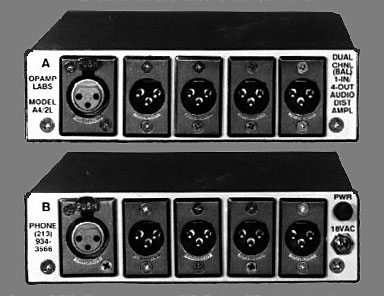

The Model A-4/2L Audio Distribution Amplifier has 2-channels, each with 1 input and 4-channels of output.

This high quality unit is designed for amplification / distribution of microphone or line signals with Isolation / Distribution for multiple audio signals / locations. The A-4/2L Audio Distribution Amplifier is a device that accepts 2 channels with a single input signal and provides this same signal to up to 4 isolated outputs without ground loops or signal degradation. It can be used for splitting monitor and front of house mixes, and "tapping" a signal prior to sending it through effects units to preserve a "dry" signal for later experimentation.

Applications:

  • Broadcast
  • Conventions / Political Rallys
  • Courtrooms / Trials
  • Live Events / Concerts
  • Government Meetings / Press Conferences
  • Home use
  • Interviews
  • News
  • PA
  • Public Meetings
  • Security Briefs
  • Sports Events
  • Stadiums
  • Studio
  • Theaters
  • Business / Industrial

PRICE:
  • $475 (U.S. Funds)

Specifications:

    INPUTS: 2 Channels
  • 1 Balanced microphone - 10k Ω
  • Unity Gain
    OUTPUTS: 2 Channels
  • 4 "XLR" - 600 Ω
  • S/N: -70db
  • DC to 20 KHz (±1db)(
  • THD: 0.05%, 20Hz-20KHz
    POWER:
  • Wall transformer - 18V AC , 200ma , Included
    SIZE:
  • 6"w x 1-5/8"h x 8"d
    WEIGHT:
  • 4 lbs
